IP Mesh MANET

A MANET (Mobile Ad Hoc NETwork) radio is a type of decentralized radio that forms a self-organizing, self-healing wireless network without the need for existing infrastructure, where each radio acts as a node and can function as a router to forward data to any other node. These systems enable robust, reliable communication for voice, data, and video by dynamically adjusting routing paths to maintain connectivity, even when nodes are added or lost.

Self-Organizing and Self-Healing:

MANETs can automatically configure and adapt to changes, such as the loss of nodes or the addition of new ones, rerouting data to maintain connectivity.

Dynamic Routing:

Algorithms ensure that data finds the most efficient path to its destination, even if some nodes are unavailable. When a user sends a message or data, it travels from node to node, with routing algorithms dynamically selecting the best path based on network conditions.

Network Adaptation:

If a node becomes unavailable, the network automatically reconfigures to use alternative paths, ensuring continuous communication.

Robustness:

The decentralized nature of MANETs means there are no single points of failure, making the network highly resistant to disruption.

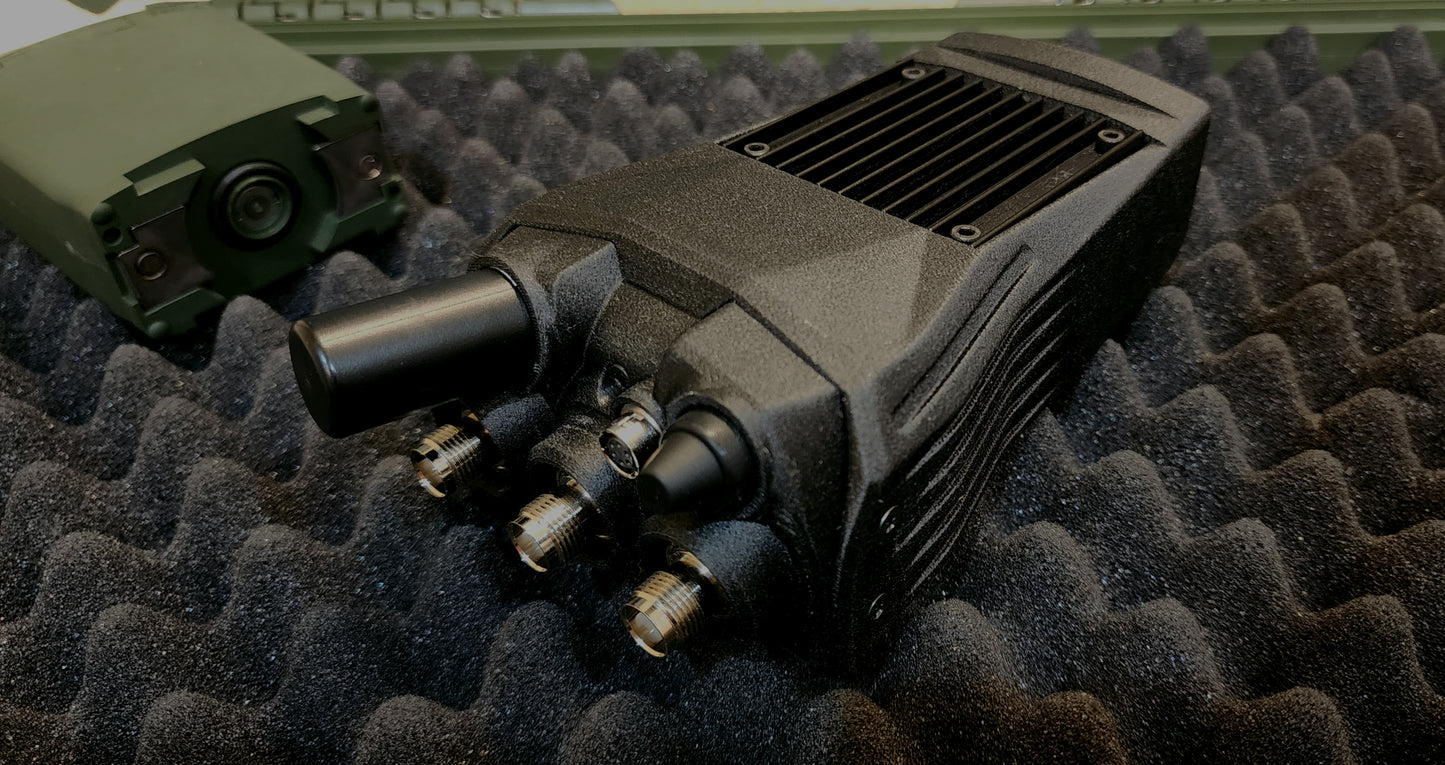

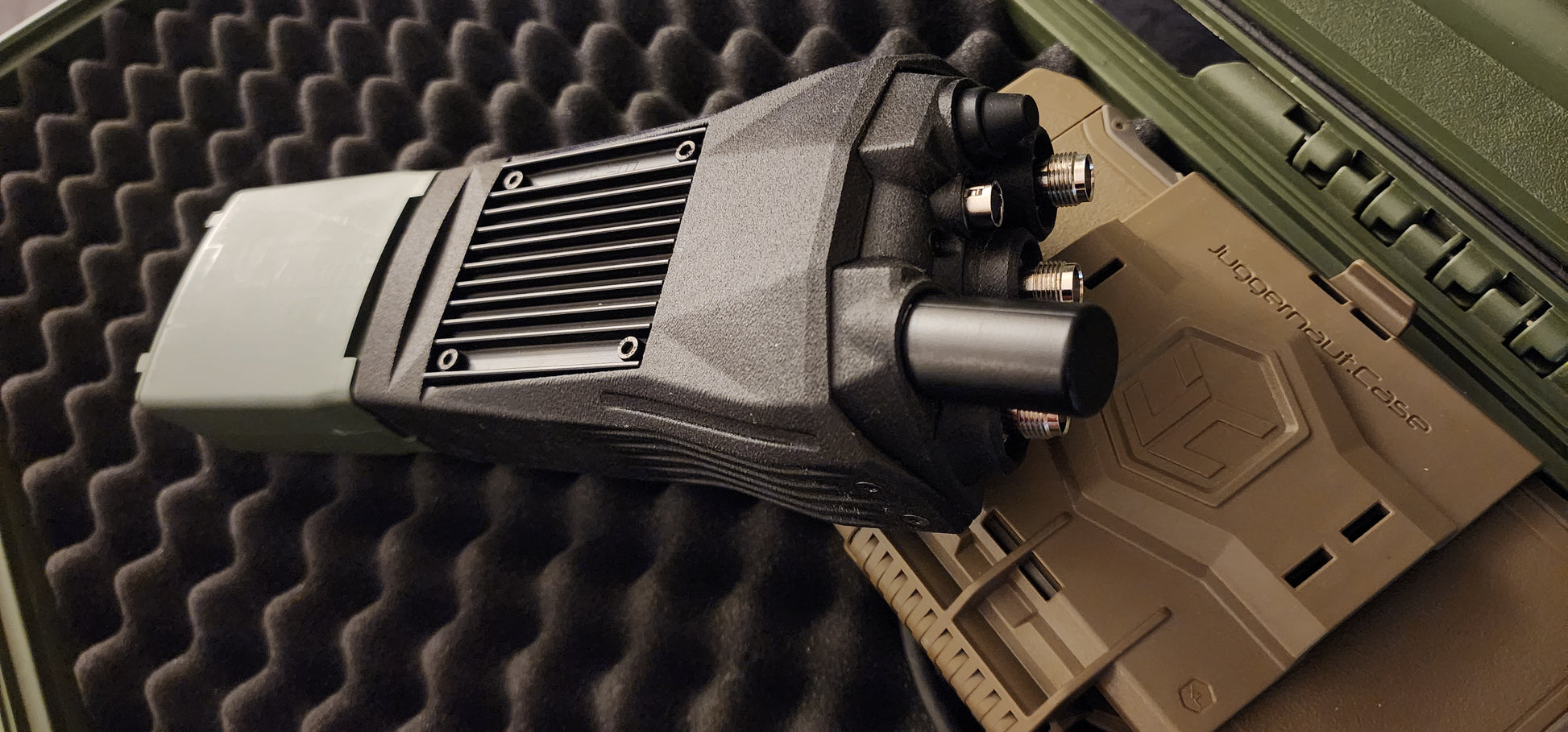

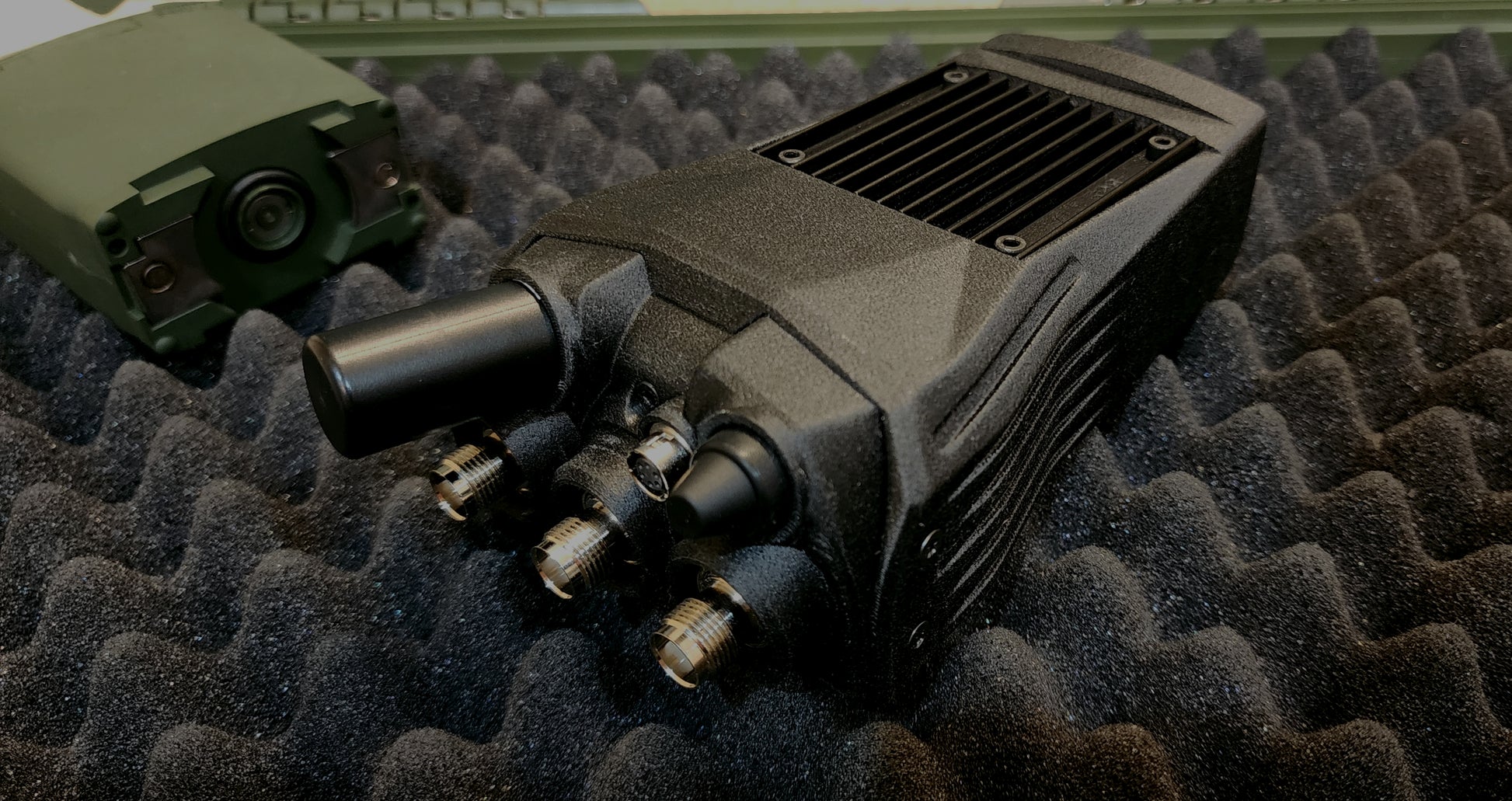

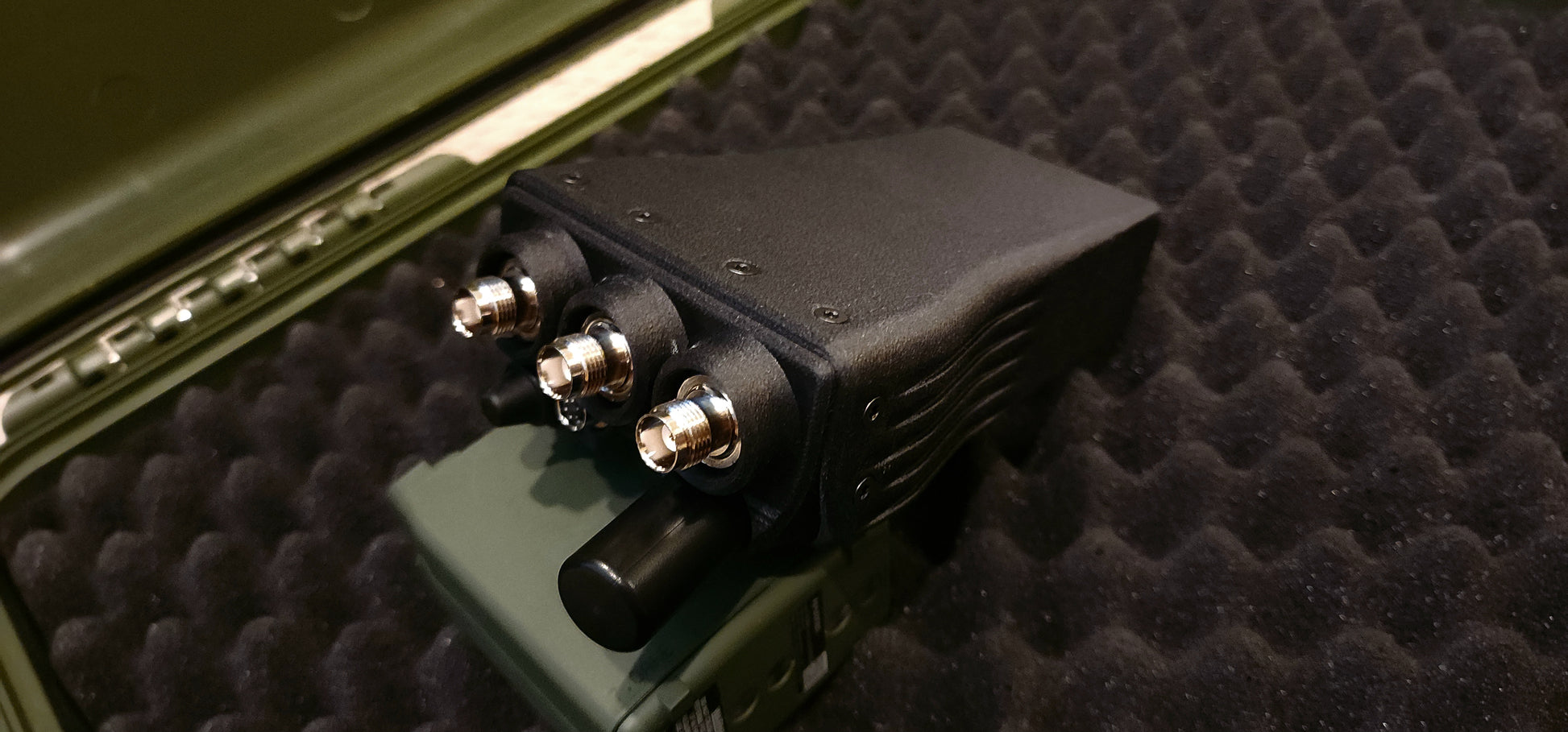

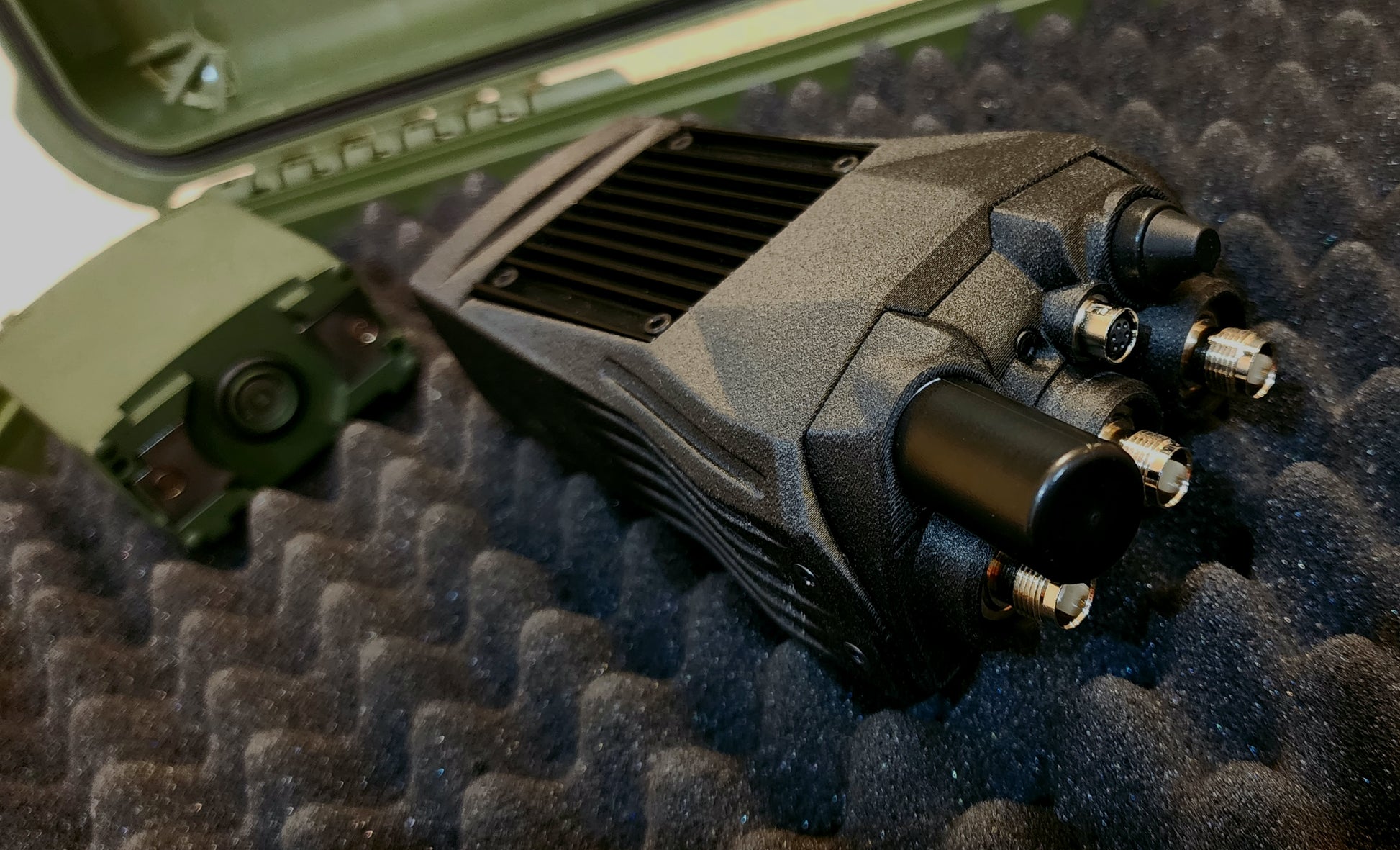

IP Mesh MANET Radio hardware:

The SBC (single board computer) of choice is a leader in robust Industrial, military, and commercial embedded applications.

Constructed with high-quality, rugged components designed for a wider operating temperature range and resistance to shock and vibration.

USA Manufactured.

SBC Hardware has a long-term availability guarantee (~10+ years), ensuring stability for long-term industrial projects.

IMX 8M Plus Quad core, 4GB RAM, 64GB eMMC, USB 3.0/MPCIE 3.0, 1GB Ethernet data port.

3 Axis accelerometer. TPM 2.0 secure crypto-processor ensuring system security/ integrity.

U-blox M8 GPS: features the M8 engine within the ZOE-M8 series provides anti-jamming and anti-spoofing capability to ensure reliable positioning in security attack scenarios.

GPU: 16 GFLOPS (high-precision) OpenGL® ES 3.1/3.0, Vulkan®, Open CL™ 1.2 FP, OpenVG™ 1.1, 3D Graphics: GC7000UL, 2D Graphics: GC520L

VPU: 1080p60 h.264 & h.265 decoder, 1080p60 h.264 & h.265 encoder

Temperature range: Industrial (-40°C to +85°C)

Wireless Radio Module: High performance 2.4Ghz MU-MIMO 2x2, WPA3, 802.11ax, 1024 QAM Wi-Fi 6 modulation. MCS 12 and 13 capable for 4096 QAM WIFI 7 modulation, providing up to 20% higher data transmission rates.

Optional sub-Ghz 900-928mhz and 5ghz radio module options will be available in near future on website.

End-users can purchase future wireless module upgrades from the website; and install them. No need to purchase an entirely new unit. Tutorials will be available.

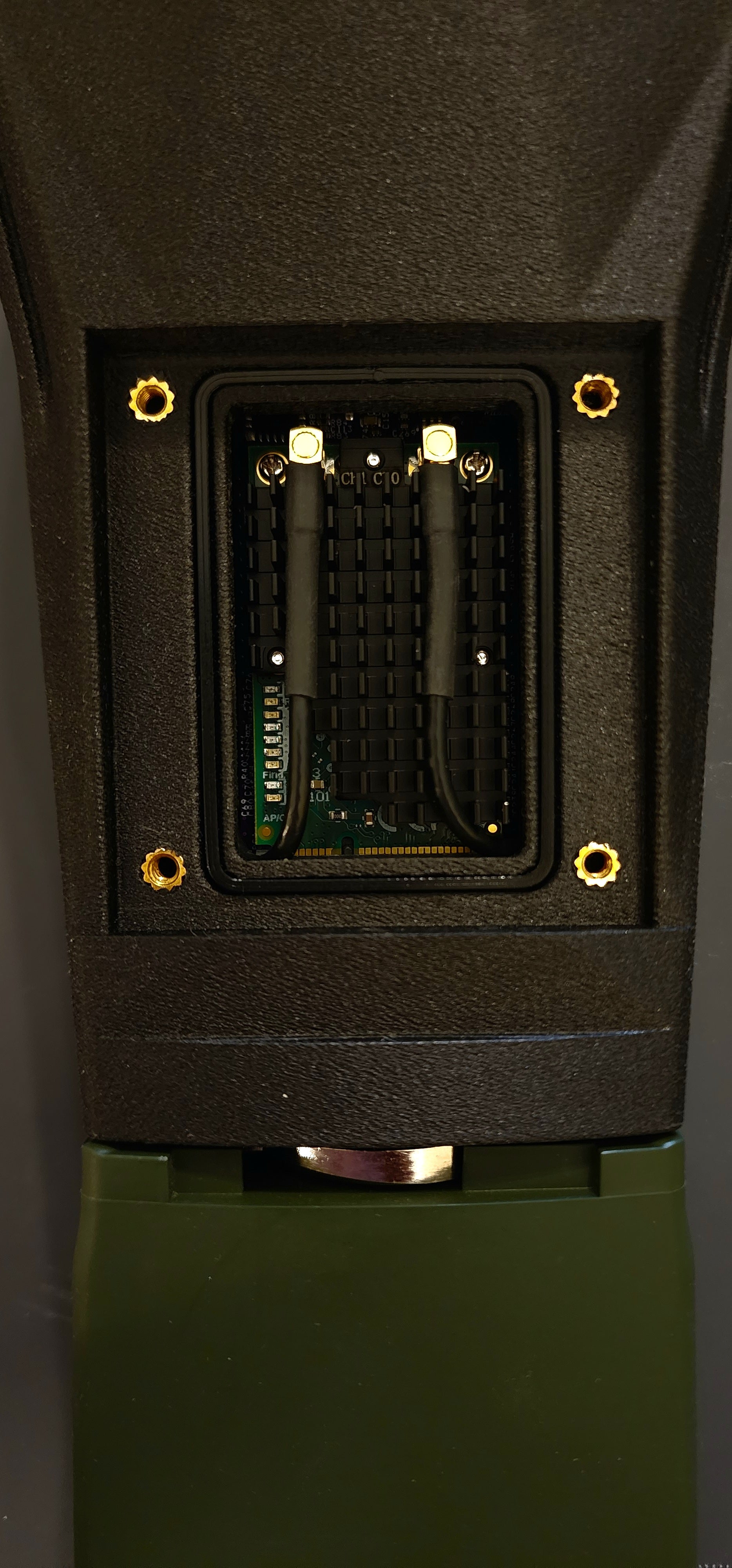

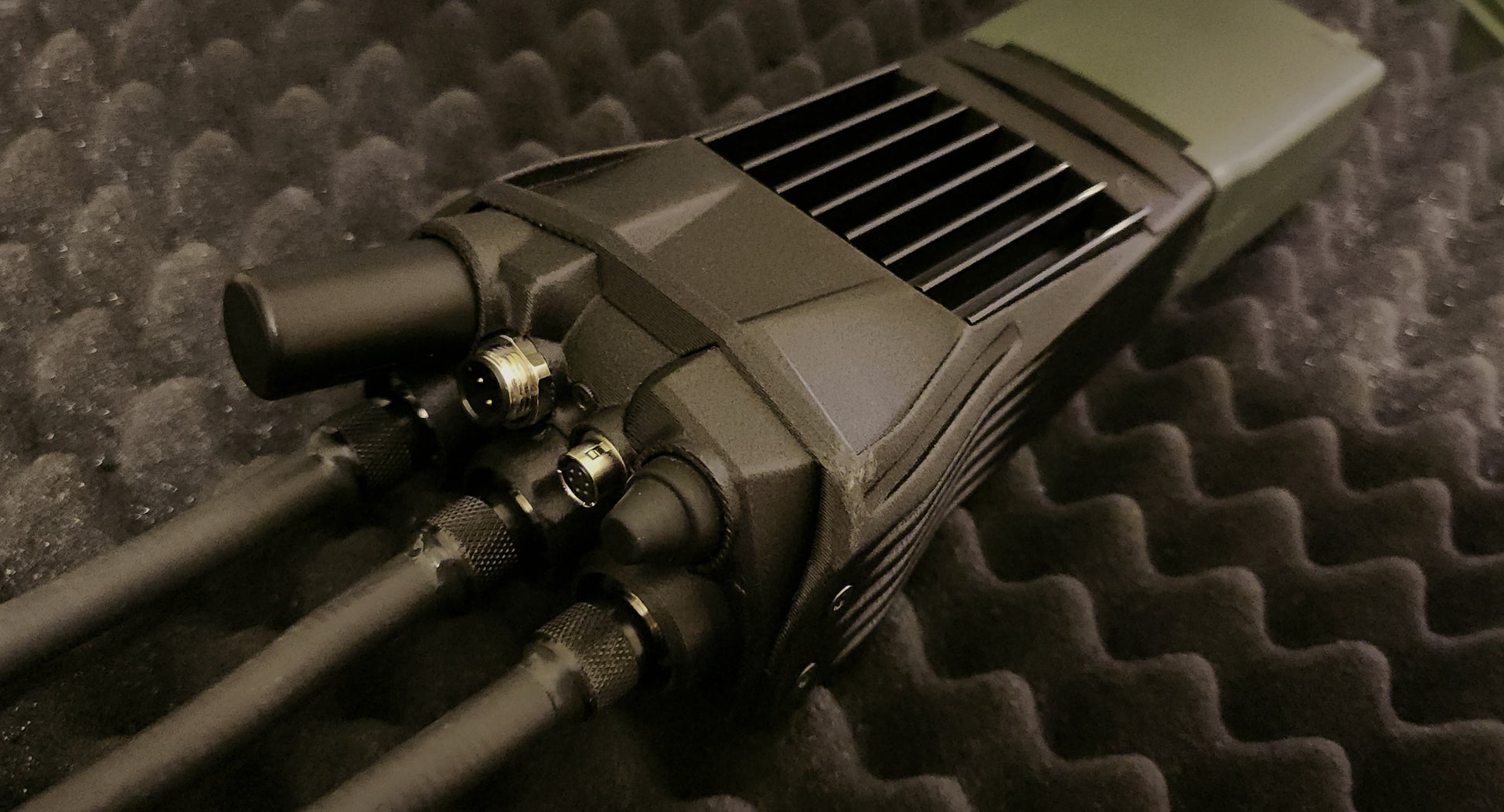

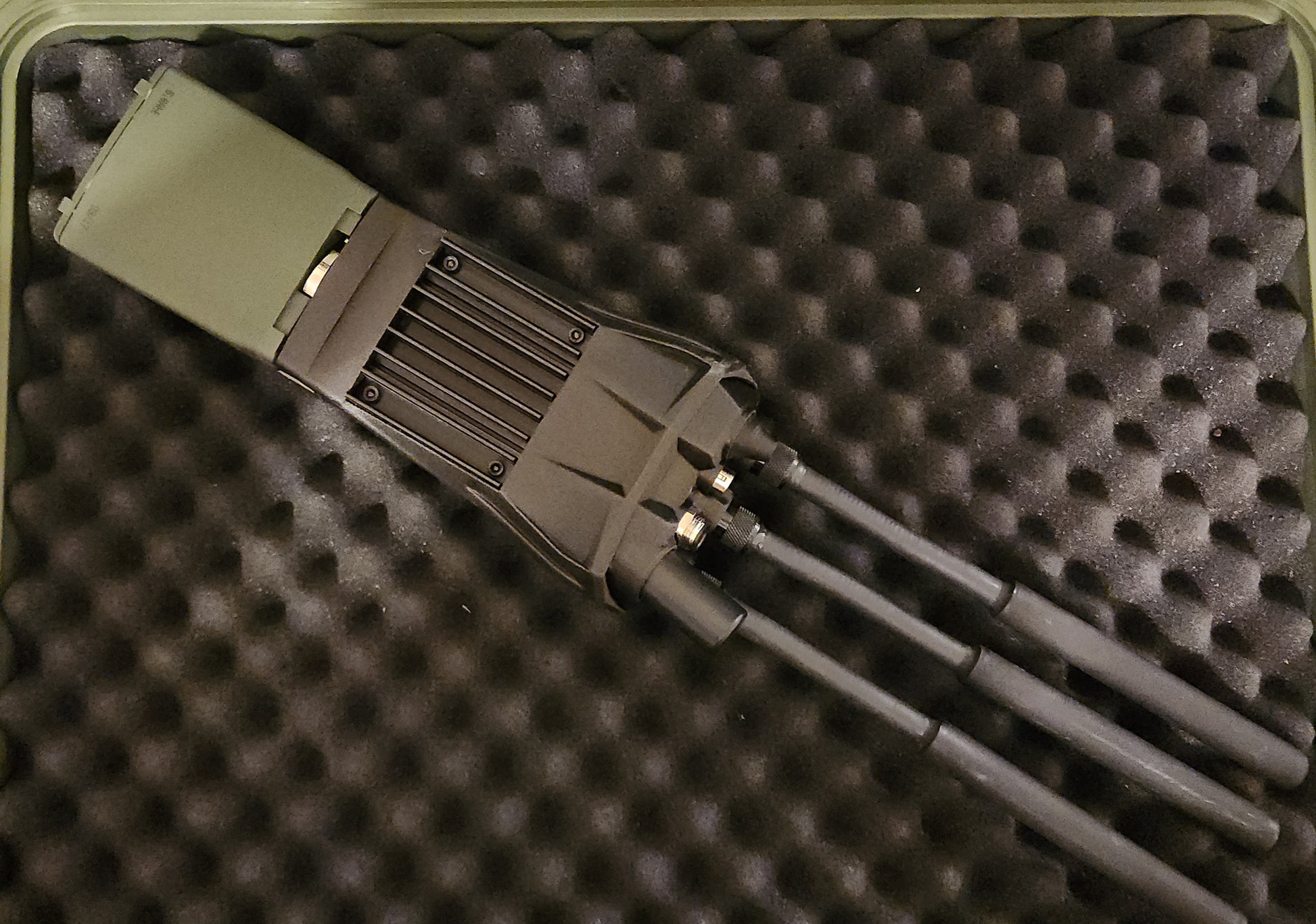

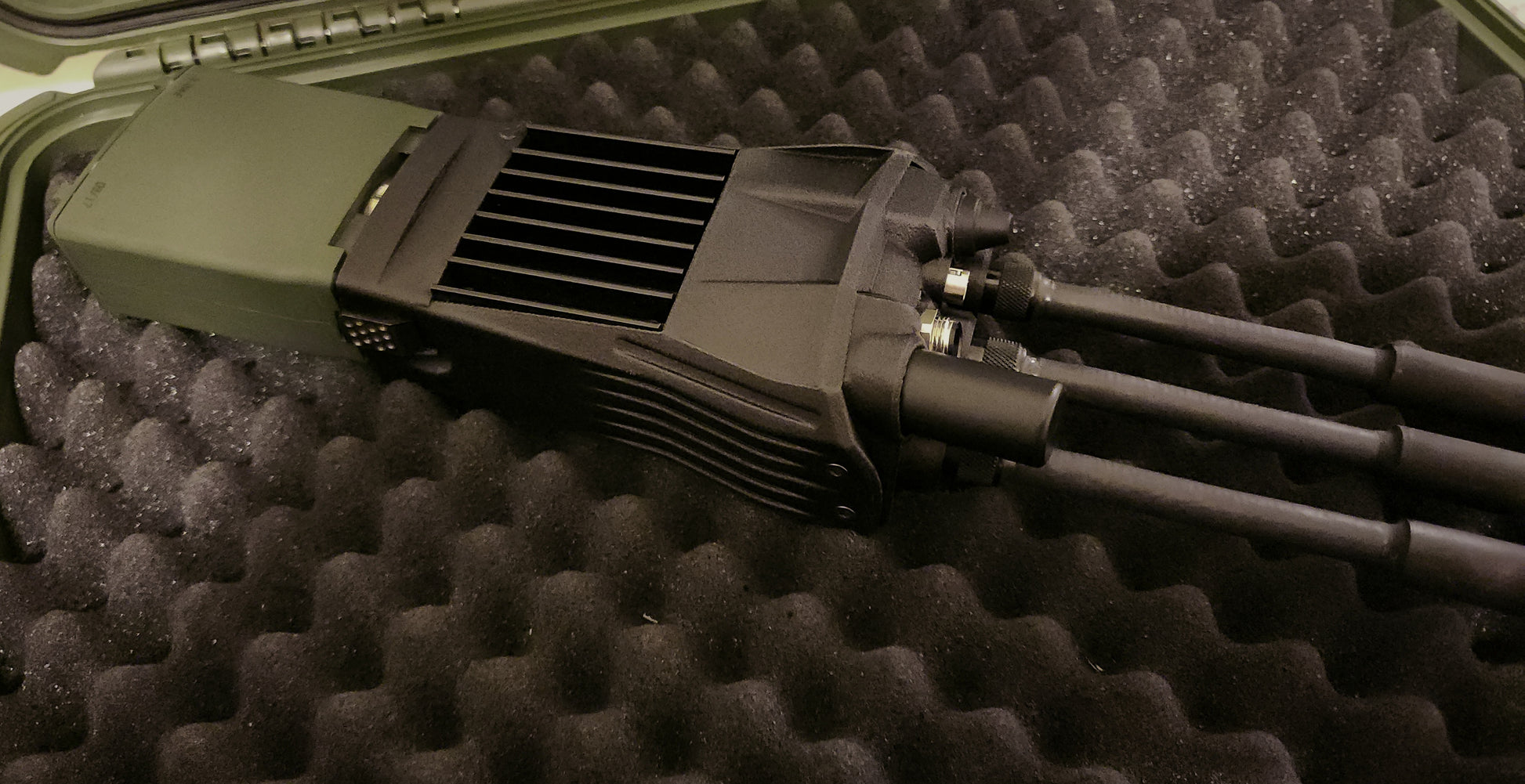

*Wireless module in photos is a demo module only. I will be keeping the current wireless network module within the IP MANET units under wraps until they ship.

These units also have the LoRa/GPS radio module running parallel. Platform options will be: Android /Linux /Custom mesh routing firmware default.

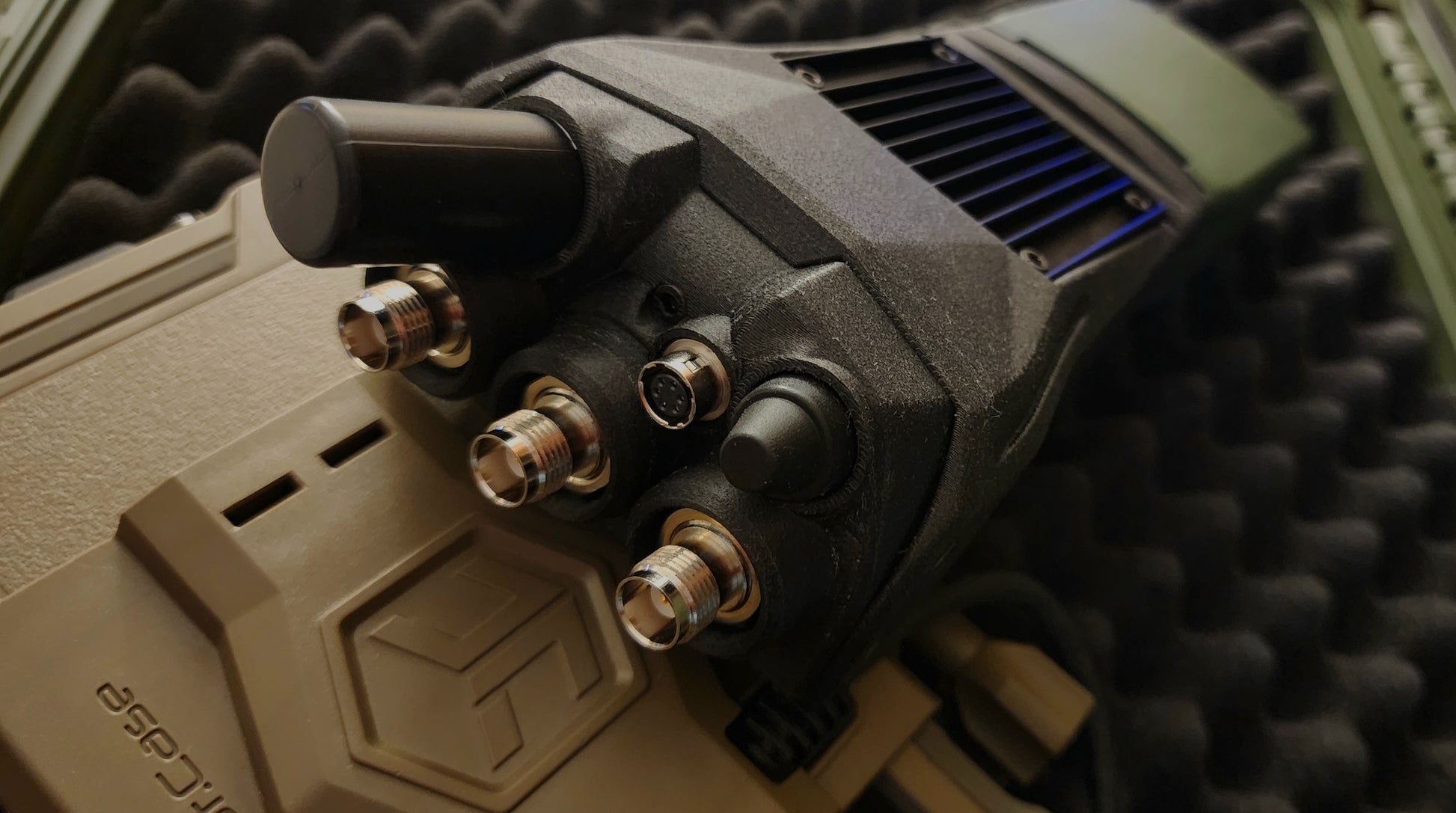

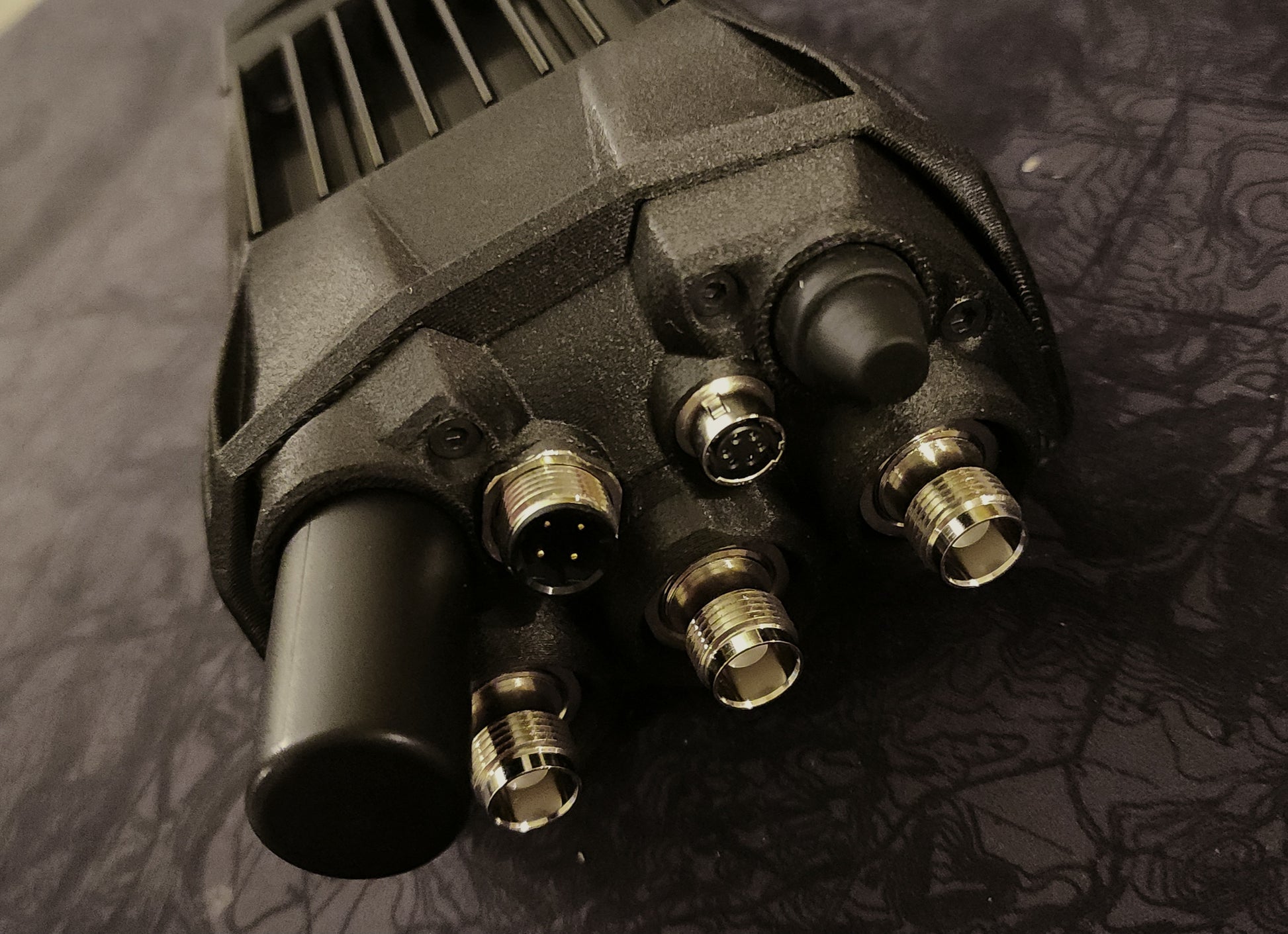

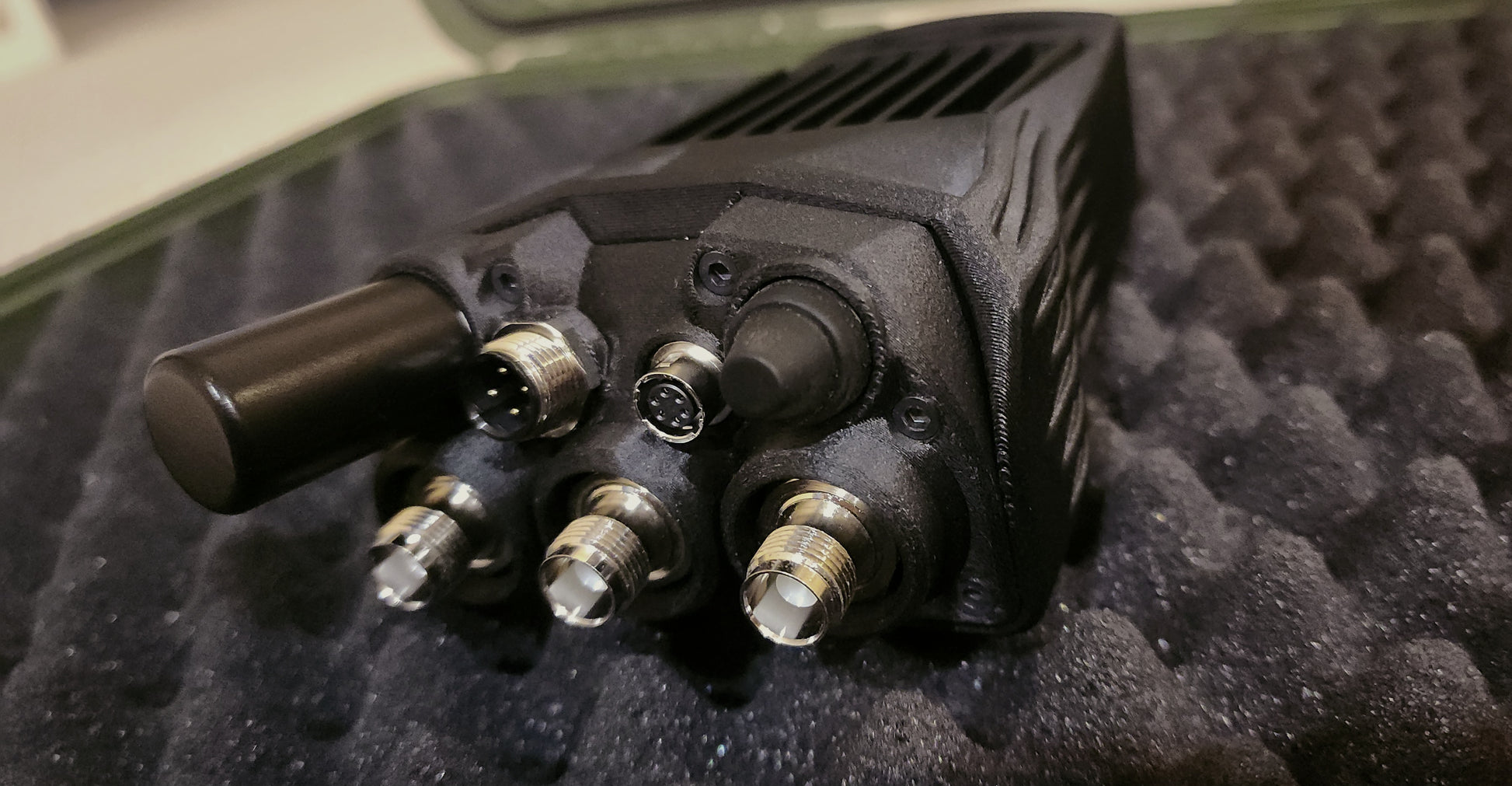

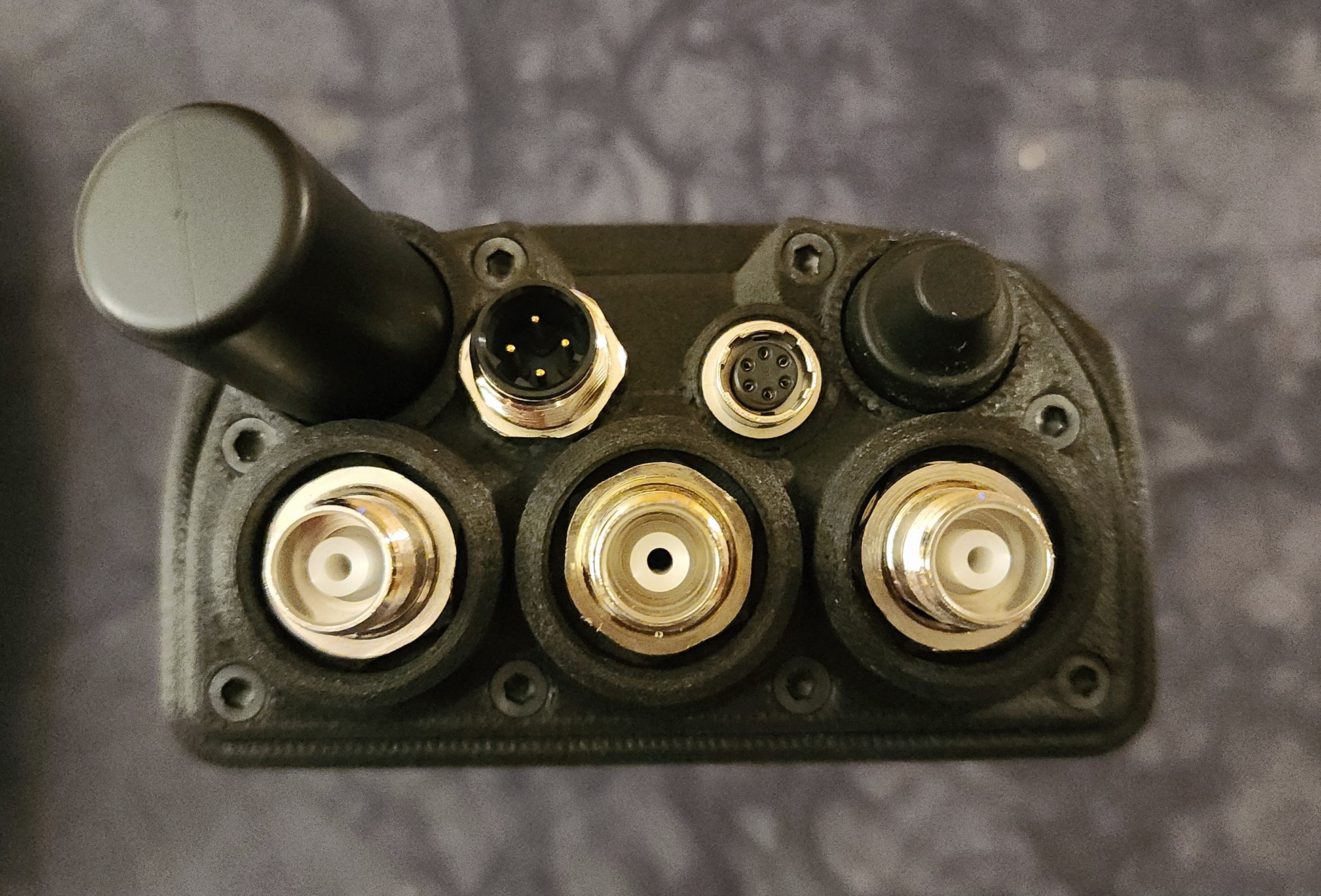

A 6-pin hirose connector added for full PTT functionality, conquering digital delay. If a adapter or cable is necessary for your specific PTT setup I will make sure to provide the solution.

IP68 4-Pin data port for hardwire Ethernet connection to EUD or any network device.

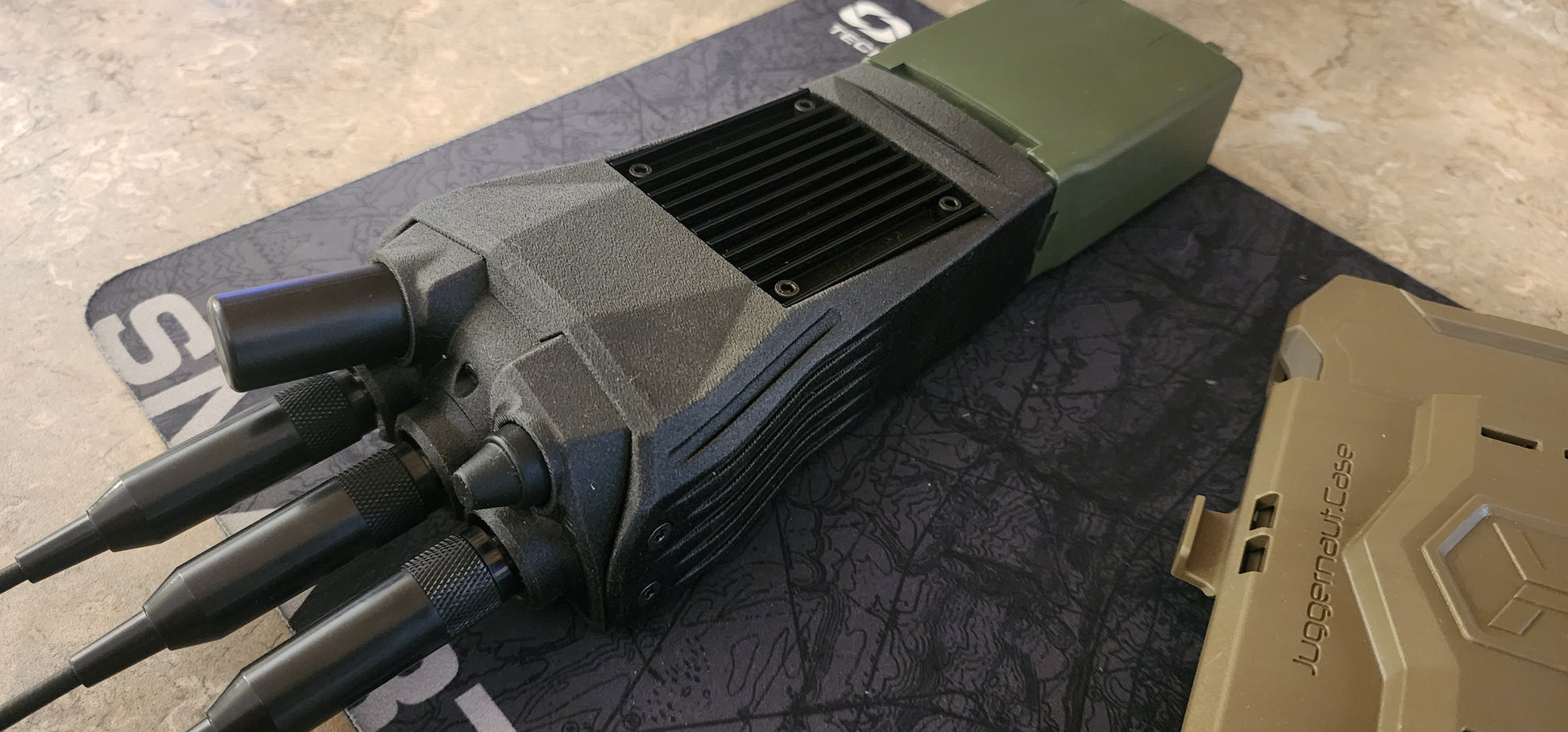

Im designing custom high gain rugged gooseneck antennas that are bend and stay, they will be included as an early bird perk.

These will be available and shipped summer 2025. Batches will ship weekly.

Within the maximum Equivalent Isotropic Radiated Power [ERIP] of 915mhz, 2.4ghz <36db 4 watt, 5ghz power spectral density [PSD]. Unlicensed spectrum.
