The current version are 915mhz LoRa Mesh radios. Within ERIP regulatory limits. No license is required.
Voice Codec 2 capable with most recent Meshtastic ATAK Plugin release.
These devices are for off-grid encrypted communication with messaging and GPS tracking.
Units connect to your smartphone, tablet, or computer via Bluetooth or Hardwire USB. They create their own standalone mesh network without the need of cellular, internet or WiFi.
Some use these with the ATAK app + Meshtastic plugin for Situational awareness, individual/group chat or tak server. High res satellite imagery offline maps, team GPS beacon tracking and map markers. Preconfigured.
Firmware used is Meshtastic, Presetup. Built with high-end certified parts; I do not use cheap parts/wiring; mission is to bring the full potential out of this technology.
Designed to be used with a mil spec Southwest ISM band Antennas if desired. 915mhz LoRa, Bluetooth, and GPS antennas included.

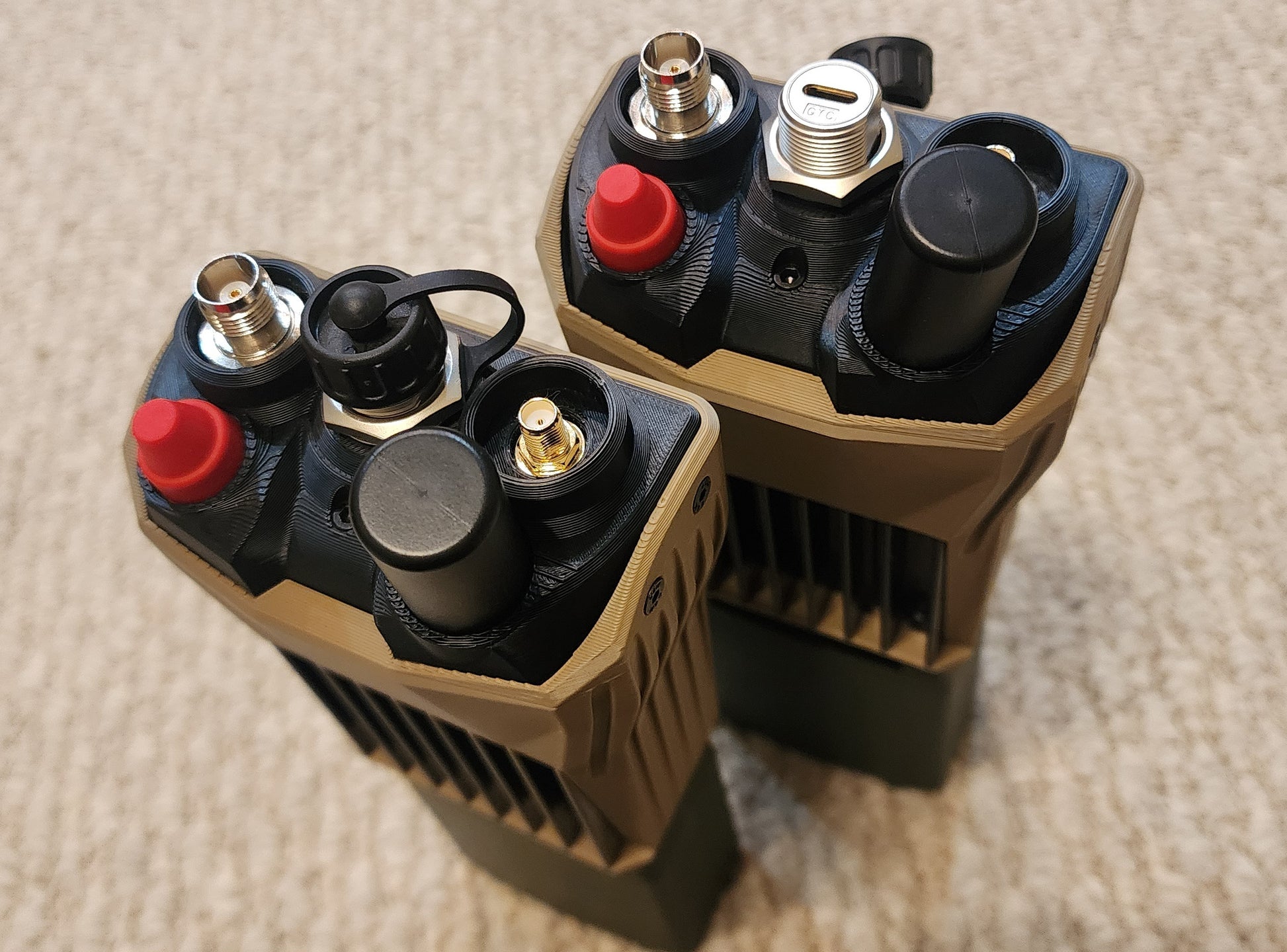

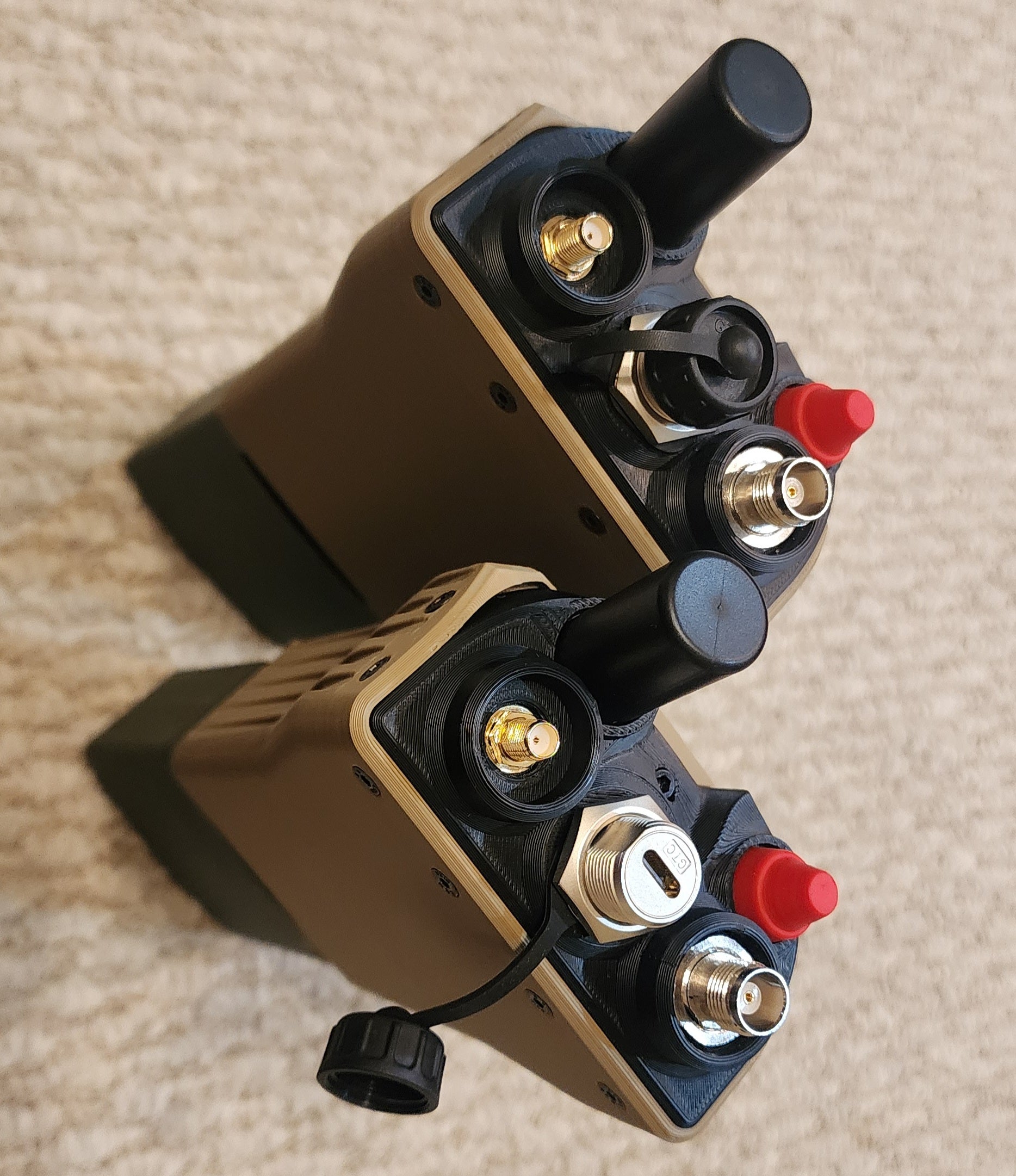

*Left Amphenol TNC 915mhz LoRa Antenna.
*Right port is for future 2.4/5ghz IP mesh antenna.
*Center port is IP67 certified waterproof USB-C Serial port for hardwire connection/programming/firmware updates.
*External GPS Antenna in front. Red button with the rubber boot is on/off.
LoRa frequency can be changed via region settings in Meshtastic app, changing the antenna to match the frequency of choice is recommended.

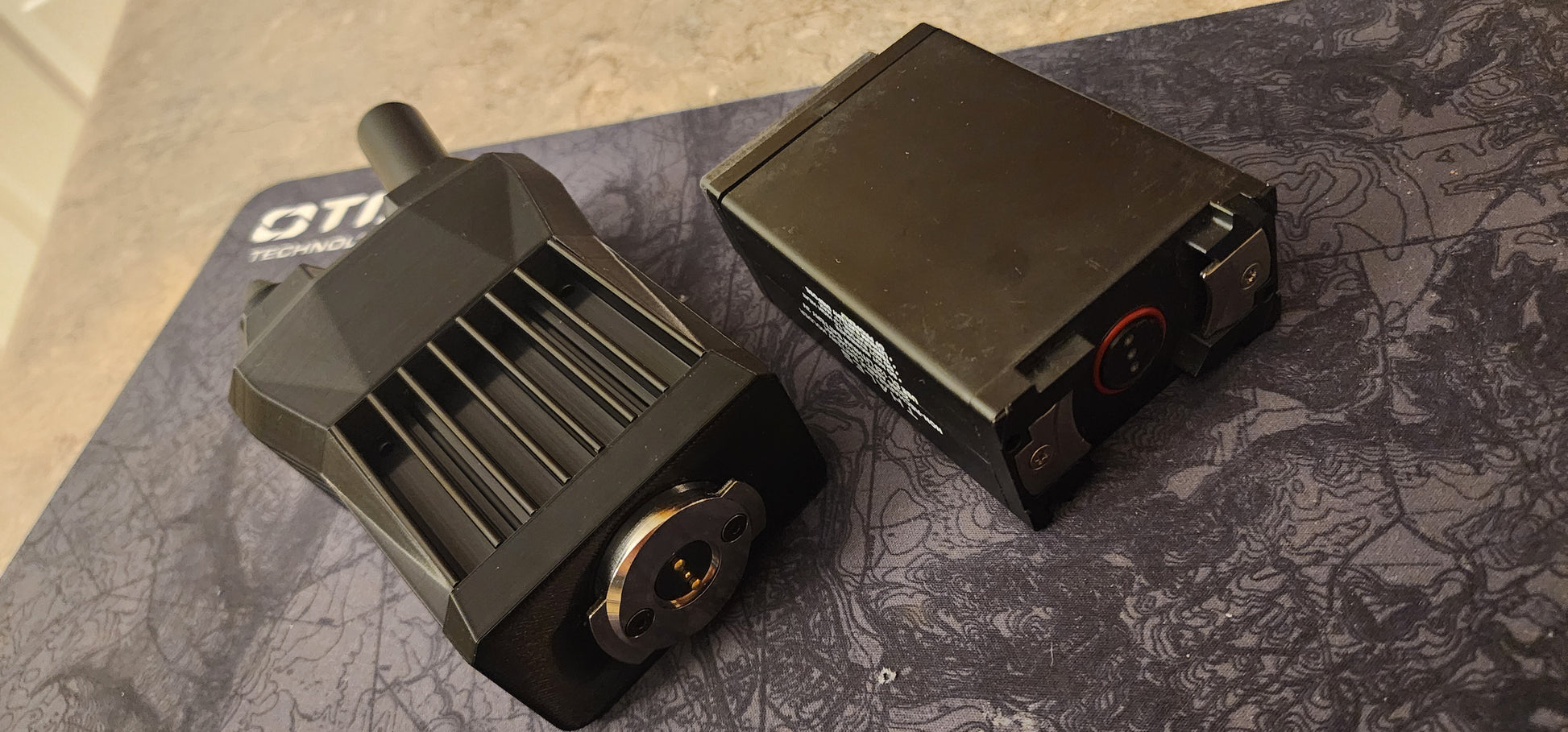

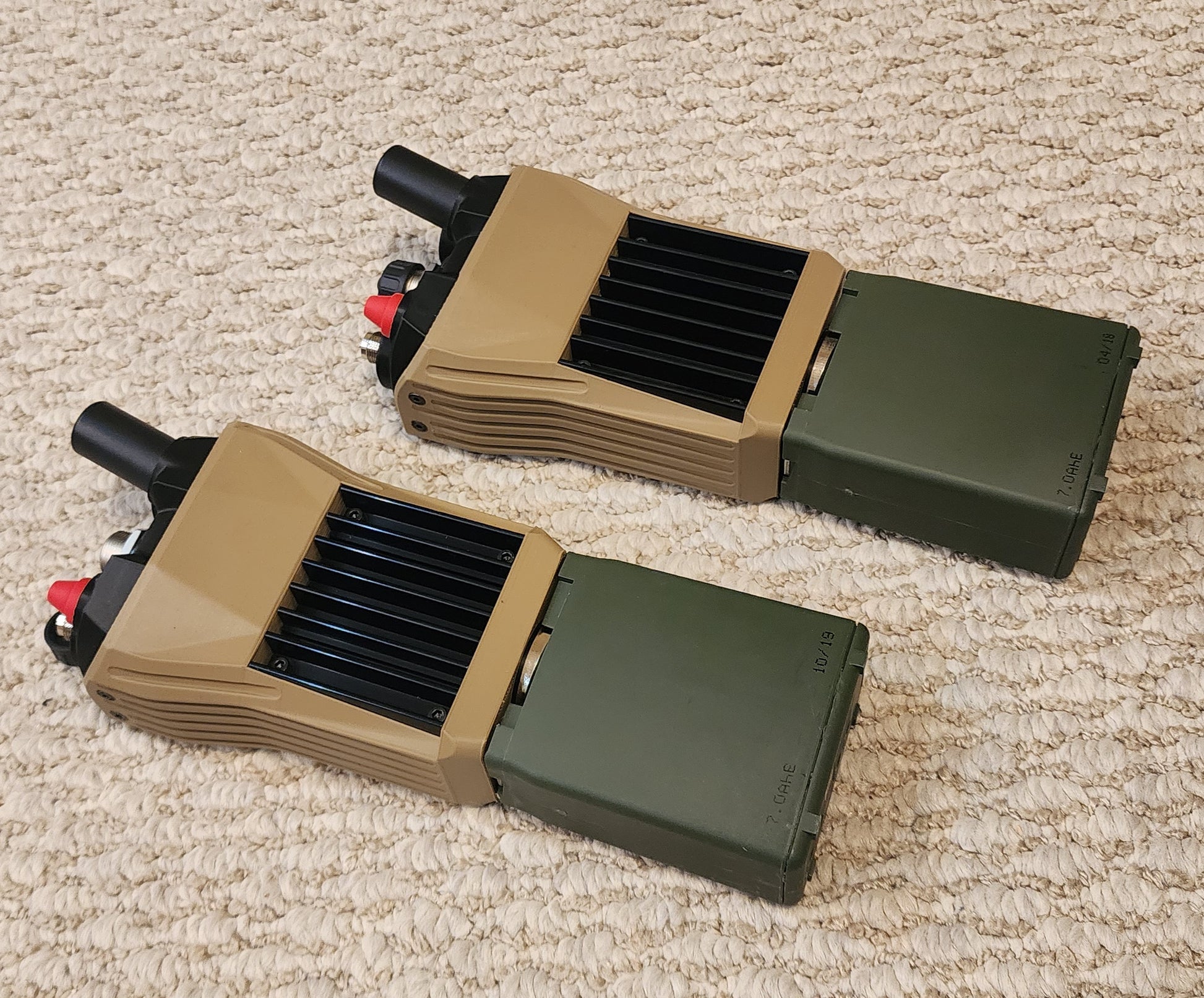

Industial grade LoRa Harware, IP67 Connections, battery flywheel hub assembly; can be used with any off the shelf PRC 148/152 battery 5-21v.
Very durable and rugged. Case color: Carbon fiber Nylon
LoRa Version 490 each, shipped UPS ground insured.
Price drops to $450 each when buying more than two units.
L3 Harris PRC-152 battery's also available for purchase at https://www.exoduscomms.com/
The upgraded IP Mesh + LoRa/GPS unit will run <$1200 each.
Weight without battery .75lbs (333g)
